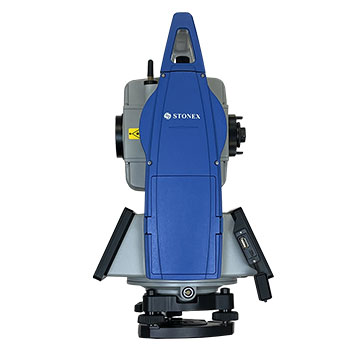

Stonex R180 Robotic Total Station

Stonex R180 Robotic Total Station

The Stonex R180 is a premium Android-powered robotic total station engineered for high-precision surveying, automated prism tracking, and efficient one-operator workflows. Featuring high-speed servo motors, advanced TDrive technology, integrated Cube-a software, and exceptional measurement ranges, the R180 is optimized for construction, engineering, infrastructure, and monitoring projects.

Key Features of Stonex R180 Robotic Total Station

High-Precision Angle Measurement
Provides angular accuracies down to 0.5″, 1″ or 2″ options, enabling highly accurate horizontal and vertical angle readings.

Superior EDM Performance
Electronic Distance Measurement with 1 mm + 1 ppm accuracy in prism mode and high-efficiency reflectorless performance up to 1,000 m.

Long-Range Measurement
Reflectorless range up to 1,000 m; prism range up to 6,000 m.

TDrive Robotic Motor Technology
Gearless motors provide smooth, silent, and rapid rotation up to 180°/sec, improving automated prism search and tracking performance.

Dual 6-Inch Android Touchscreen Displays
Two large color LCD touchscreens with Android OS and Cube-a onboard software enable intuitive interaction, real-time data management, and seamless workflow execution.

Integrated Camera & Guide Light Aids
Built-in camera and guide light support visual target verification and collimation during field operations.

Advanced Target Acquisition Tools
Features such as Fast360®, Automatic Prism Centering (APC), and OnePole Solution enhance measurement flexibility and hybrid GNSS/TS workflows.

Rugged Environmental Protection
Designed to operate in harsh outdoor conditions with high IP protection (IP55/IP65 depending on configuration), supporting extreme temperature ranges.

Extended Field Operation Battery
Long-life Li-ion battery with up to 6 hours continuous use per battery and rapid recharge capability.

Applications

• Construction Layout & Alignment

• Topographic & Control Surveys

• Road & Infrastructure Projects

• Engineering & Utility Surveys

• Monitoring & Deformation Analysis

• Hybrid GNSS/Total Station Workflows

• Education & Professional Training

Included Accessories (Typical Brochure / Package)

• Stonex R180 Robotic Total Station with Tribrach

• Two Li-ion Batteries (Li-64)

• Battery Charger & Adapters

• Carrying Case

• Target Sheets

• Rain Cover

• Silica Gel Packs

• Tool Bag and Straps

• Driver / Software USB Drive (Manuals & Tutorials)

Why Buy Stonex R180 from Rise Geo Control Systems?

• Official Stonex Authorized Dealer – ensures genuine products with full warranty support.

• Local Calibration & Technical Service – certified service center support in the UAE.

• On-Site Training & Commissioning – field setup and operator training available.

• Competitive Pricing & Fast Delivery – optimized for MENA procurement cycles.

• Expert Pre-Sales Consultation – ensures correct configuration for project requirements.
