Rebound Hammer

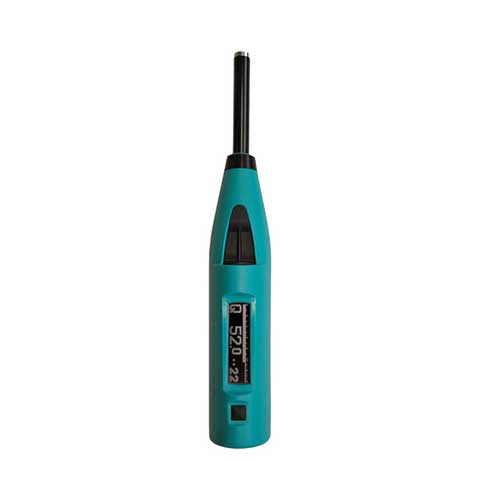

Rebound Hammer – Silver Schmidt Concrete Test Hammer

The Silver Schmidt Rebound Hammer is a high-performance, non-destructive concrete testing tool designed for accurate, on-site assessment of compressive strength. Leveraging rebound technology, it measures the surface hardness of concrete and correlates it with strength values, providing reliable data without damaging the structure. With advanced impact mechanics and digital integration (in select models), this rebound hammer is ideal for quality control and structural evaluation.

Key Features of the Silver Schmidt Rebound Hammer

Non-Destructive Testing (NDT): Evaluates compressive strength without damaging concrete structures.

Accurate & Reliable: Advanced rebound mechanism ensures consistent and repeatable results, even on vertical or overhead surfaces.

Fast & Efficient: Immediate test results on-site, significantly reducing testing time compared to destructive methods.

Portable & Lightweight: Compact, handheld design (weighing only 570g) ensures ease of use in field conditions.

High-Performance Impact Energy: Delivers 2.207 Nm energy through a 135 g hammer mass for improved precision on hard or dense concrete.

Wide Strength Range: Capable of estimating compressive strengths from 10 to 100 N/mm², making it suitable for a wide range of applications.

Digital Options (Silver Schmidt Live Models): Optional integration with mobile apps for data logging, instant reporting, and cloud connectivity (model dependent).

Applications of the Rebound Hammer

On-Site Strength Assessment: Ideal for evaluating the compressive strength of concrete in finished structures, bridges, buildings, slabs, and columns.

Quality Control: Used during and after curing to verify the strength development of concrete on construction sites.

Concrete Uniformity Checks: Identify weak spots or inconsistencies across large concrete surfaces.

Rehabilitation & Inspection: Evaluate old or deteriorating structures for maintenance planning or structural health monitoring.

Geotechnical Use: Extended use in rock mechanics for assessing rock hardness and classification.

Included Accessories

• Carrying case

• Grinding stone (for surface preparation)

• Instruction manual

• Calibration certificate (optional)
