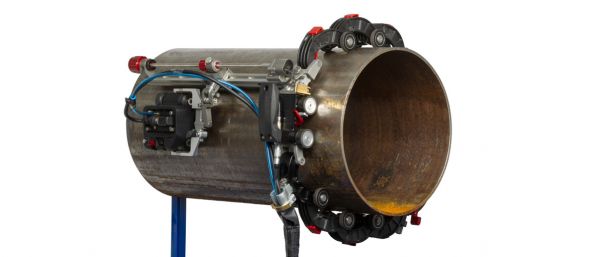

CHAIN SCANNER-Weld Inspection Scanner
The CHAIN SCANNER is a compact, manual weld inspection tool specifically engineered for circumferential scanning on pipes using Phased Array Ultrasonic Testing (PAUT) and Time-of-Flight Diffraction (TOFD). Designed for use in demanding industrial environments, it offers stable probe control and precise encoder tracking across various pipe diameters. The tensioned chain mounting system ensures secure attachment to the pipe surface, enabling smooth, repeatable scanning in all orientations—horizontal, vertical, or overhead. Ideal for pipeline integrity assessments, corrosion mapping, and weld defect detection in oil & gas, power generation, and petrochemical industries.
Key Features of CHAIN SCANNER
Tensioned Chain Mounting System: Securely grips pipes from 3″ to 38″ in diameter, ensuring consistent scanner movement during inspection.
Dual Probe Support: Accommodates two PAUT, TOFD, or mixed probes for simultaneous scanning, improving coverage and reducing inspection time.
High-Precision Encoder: Built-in incremental encoder delivers accurate positional feedback for reliable data correlation.
Compact & Lightweight: Designed for easy transport, setup, and operation in field conditions—ideal for tight or elevated access areas.
Durable Construction: Made from anodized aluminum and stainless steel components for long-term resistance to corrosion and wear.
Applications of CHAIN SCANNER
Circumferential Weld Inspection: Delivers accurate scanning of pipe welds for flaw detection and weld quality assurance in industrial settings.
Corrosion & Wall Thickness Mapping: Effective for identifying areas of wall thinning due to corrosion or erosion.
Pipeline Maintenance & Integrity Testing: Deployed during routine inspection programs, plant turnarounds, or shutdowns to assess pipe condition and integrity.
Versatile Pipe Scanning: Suitable for small- to medium-diameter pipes (1–12 inches) and adaptable for vertical or overhead operations.
