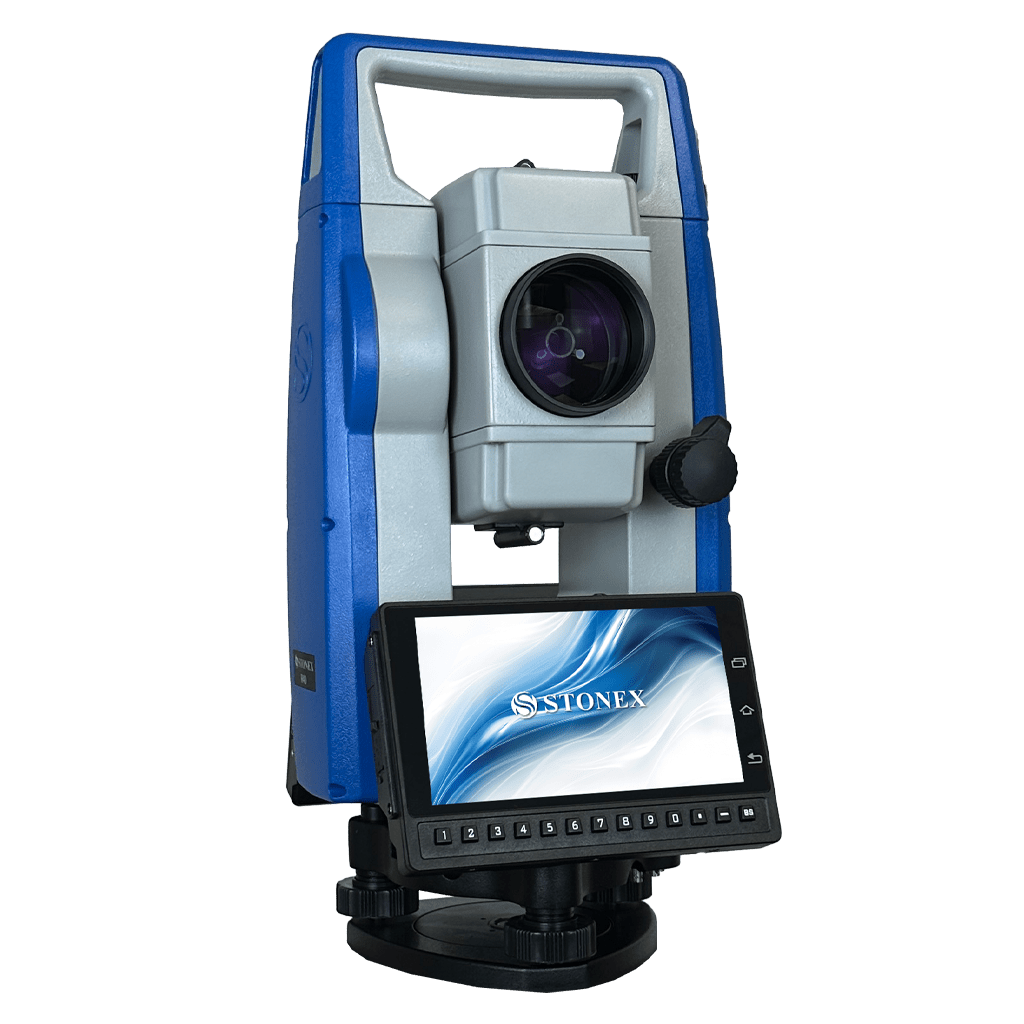

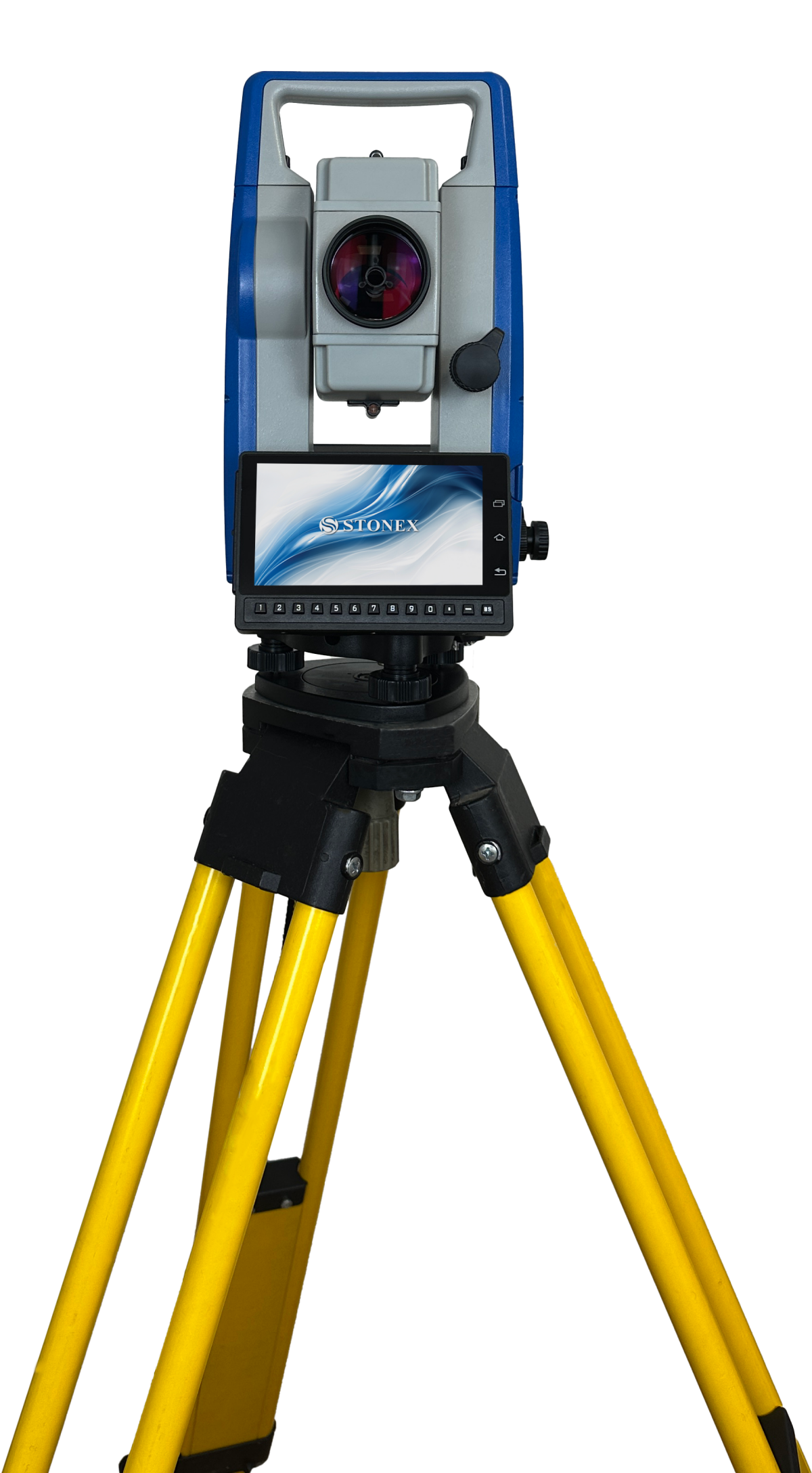

Stonex R40 Mechanical Android Total Station

Stonex R40 Mechanical Android Total Station

The Stonex R40 Android Total Station is a modern mechanical total station engineered for precision surveying and efficient digital workflows. Built on Android 11 and powered by Cube-a onboard software, it enables seamless integration between total station and GNSS data, improving productivity and reducing field-to-office turnaround time.

With 1″ / 2″ angular accuracy, long-range EDM capabilities, and real-time connectivity via 4G, Bluetooth, and Wi-Fi, the R40 is designed for professionals who require accuracy, speed, and smart data handling in demanding environments.

Key Features of Stonex R40 Mechanical Android Total Station

High-Precision Measurement

The R40 delivers 1″ / 2″ angular accuracy combined with advanced EDM technology, ensuring reliable results for both short and long-distance measurements. It achieves ±2 mm + 2 ppm accuracy in prism mode and ±3 mm + 2 ppm in reflectorless mode, making it suitable for high-precision engineering tasks.

Long Measurement Range

Designed for versatility, the instrument can measure distances up to 5000 m using a prism and 1000 m in reflectorless mode, allowing efficient operation across large construction sites and infrastructure projects.

Android 11 with Cube-a Software

The built-in Android 11 operating system and Cube-a field software provide an intuitive interface with powerful capabilities such as:

• Integrated CAD functionality
• Real-time survey and stakeout
• GNSS + Total Station data fusion
• Map overlay integration

This eliminates the need for additional controllers in many workflows.

Advanced Connectivity

The R40 supports:

• 4G GSM connectivity for real-time data transfer
• Bluetooth & Wi-Fi for wireless communication
• USB Type-C & TF card support for flexible data management

This ensures seamless communication between field and office.

Powerful Hardware Performance

Equipped with 4GB RAM and 64GB internal storage, the R40 enables smooth data processing, fast operation, and efficient storage of large survey datasets.

User-Friendly Design

• Dual 5.5-inch TFT LCD displays for clear visibility
• 13-key keypad with trigger key for quick operation
• Ergonomic and rugged construction suitable for field conditions

Applications

• Land Surveying & Topographic Mapping
• Construction Layout & Site Engineering
• Road & Infrastructure Development
• Cadastral & Boundary Surveys
• GNSS + Total Station Hybrid Projects
• Real-Time Field Data Collection

Software – Cube-a

The Cube-a onboard software enhances field efficiency with:

• Integrated CAD drawing tools
• GNSS and total station data integration
• Real-time mapping and stakeout
• Wireless data transfer capabilities

It allows surveyors to complete complex tasks directly in the field without additional processing steps.

Advantages

• Combines traditional accuracy with modern smart technology
• Reduces dependency on external controllers
• Improves workflow efficiency and reduces errors
• Enables real-time collaboration between field and office
• Ideal for both standard and advanced surveying applications
