Profometers: Rebar Diameter and Cover Meter-PM-8000

Rebar Diameter and Cover Meter – PM-800 (Profometer Series)

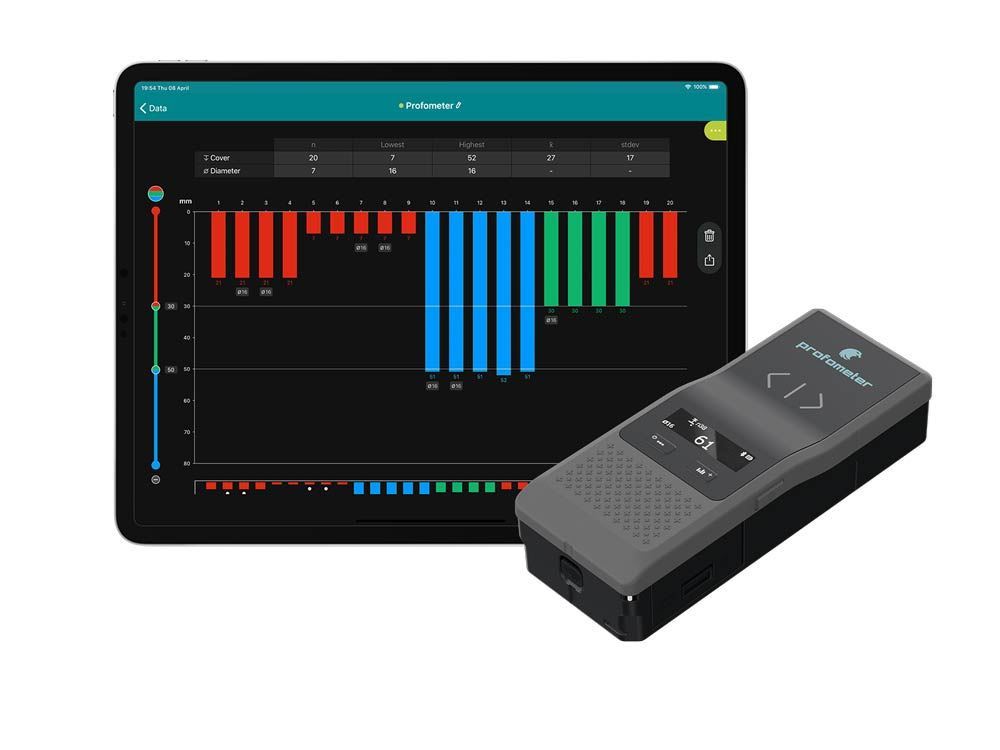

This new generation profometer allows for quick and precise detect the position, diameter and depth of reinforcement bars. This device is especially suitable for non-destructive investigations on existing concrete structures. The compact, lightweight and wireless sensor is provided with a screen that indicates the location of the bars and the information about diameter and depth.

The PM-8000 Rebar Diameter and Cover Meter is a high-precision, non-destructive testing instrument designed to detect the location, depth, and diameter of rebars embedded in concrete structures. It employs advanced electromagnetic pulse induction technology to provide accurate and reliable measurements, making it ideal for civil engineering inspections, quality control, and structural assessments.

The PM-800 Profometer is a next-generation rebar diameter and cover meter developed for fast, accurate, and non-invasive assessment of reinforcement in concrete structures. Utilizing electromagnetic pulse induction technology, this compact and rugged device detects rebar position, spacing, depth, and estimates diameter—without damaging the structure. Its high-resolution touchscreen and intuitive software ensure ease of operation, making it ideal for field engineers, QA/QC professionals, and inspectors.

Whether used for structural assessments, compliance checks, or maintenance planning, the PM-800 delivers critical reinforcement data with unmatched reliability and speed.

Key Features of PM-800 Rebar Locator

• Precise Rebar Detection: Accurately identifies the position and spacing of embedded steel bars in concrete structures.

• Non-Destructive Diameter Measurement: Determines the diameter of rebars without the need for coring or damage.

• Real-Time Depth Display: Measures cover depth with millimeter precision—even in complex reinforcement layouts.

• Touchscreen Interface: Large, anti-glare display with graphical visualization for intuitive operation in bright environments.

• Wireless & USB Data Transfer: Store and export inspection data via USB or wireless connection for post-processing and reporting.

• Multilingual Operation: Supports multiple language options for global deployment.

• Field-Ready Design: Lightweight, compact, and IP-rated for rugged outdoor and onsite inspections.

Applications of Rebar Diameter and Cover Meter PM-800

• Structural Integrity Assessment: Used on bridges, tunnels, high-rise buildings, and retaining walls to assess rebar layout and depth.

• Construction Site QA/QC: Ensures correct rebar placement and cover thickness in accordance with construction drawings and codes.

• Retrofit & Maintenance Projects: Facilitates condition surveys, corrosion risk analysis, and planning of rehabilitation works.

• Safety & Compliance Audits: Detects inadequate concrete cover—a common cause of rebar corrosion and structural failure.

• Training & Research: Used in academic and R&D settings for demonstration, material testing, and student education.
