Plate Bearing Apparatus

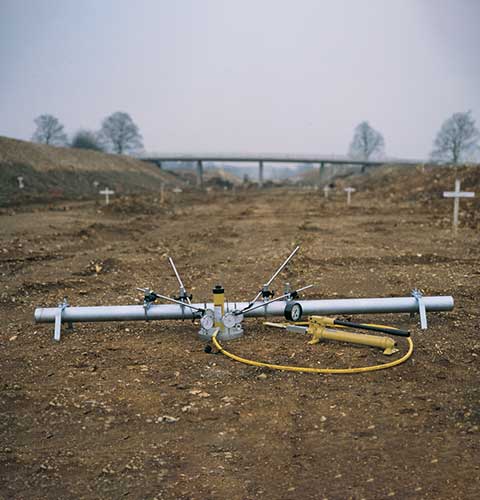

The Plate Bearing Apparatus (500 kN capacity) is designed for evaluating the bearing capacity and deformation characteristics of soil directly in the field. It is essential for foundation design under static loads and for conducting plate loading tests on soils and flexible pavements. The apparatus includes a set of steel bearing plates and a high-capacity hydraulic jack system for accurate and repeatable load applications. Suitable for both repetitive and non-repetitive tests, this equipment complies with BS, EN, and ASTM standards.
Note: A reaction beam or reaction load system is required but not included with the apparatus.
Key Features of Plate Bearing Apparatus – 500 kN Capacity
-
High-Capacity Hydraulic Jack: Rated at 500 kN with integrated ball seating for stable load application.
-
Multi-Diameter Steel Plates: Includes four precision-machined bearing plates (150 mm to 760 mm) with concentric markings.
-
Complete Pressure System: Includes hand-operated pump, pressure gauge, and high-pressure hose with quick-release couplings.
-
Precision Displacement Measurement: Equipped with four 50 mm travel dial gauges with 0.01 mm divisions.
-
Robust Construction: All components are manufactured from durable materials for harsh field conditions.
-
Meets International Standards: Conforms to BS 1377, EN 1997-3, and ASTM D1194/D1195/D1196.
Applications
-
Foundation Design: Used for designing spread footings under static loads.
-
In-Situ Soil Bearing Tests: Ideal for testing soil stiffness and strength directly on site.
-
Flexible Pavement Evaluation: Assess bearing characteristics of subgrades and pavement layers.
-
Construction Site Assessment: Quick evaluation of ground support capability prior to construction.
Included Accessories
-
Hydraulic jack (500 kN)
-
Pressure pump with gauge
-
3 m high-pressure hose
-
4 × Dial gauges (50 mm travel × 0.01 mm)
-
Datum bar
-
4 × Bearing plates (150, 305, 455, 760 mm)
-
Carrying components for field transport
