TDR2 – Pile Integrity Testing System
The TDR2 – Pile Integrity Testing System is a rugged, lightweight, and highly efficient testing system for evaluating the integrity of concrete and timber piles. Designed for both pre-cast and cast-in-place piles, the system helps identify structural anomalies such as cracks, voids, overbreaks, changes in section, and zones of poor-quality concrete. It also accurately determines pile length, stiffness, and mobility.
Built for performance in tough environments, the TDR2 features waterproof connectors, a daylight-readable screen, and solid-state memory. Backed by powerful analysis software and simulation tools, the system is ideal for high-volume pile testing in infrastructure and geotechnical projects.
Key Features of TDR2 – Pile Integrity Testing System
-
Non-Destructive Testing: Identify cracks, restraints, shaft variations, and poor concrete zones.
-
Fast Operation: Test up to 200 piles per day.
-
Built-In Analysis Tools: Onboard measurement of pile length, stiffness, and dynamic mobility.
-
Advanced Software: Includes TPAP software with simulation modules and impedance log analysis.
-
Compliant with International Standards: ASTM D5882 and AFNOR NFP94-160-2 & 4.
-
Long Battery Life: Operates up to 8 hours on a single charge.
-
Portable and Durable: Lightweight, IP-rated connectors, and rugged housing for field use.
Applications of TDR2 – Pile Integrity Testing System
-
Pile Integrity Testing: Non-destructive testing of concrete and timber piles.
-
Anomaly Detection: Identify voids, cracks, and overbreaks in pile shafts.
-
Length Measurement: Measure pile depth using acoustic wave velocity.
-
Stiffness Evaluation: Assess dynamic pile head stiffness.
-
Foundation Quality Control: Verify pile construction quality during and after installation.
Software & Data Analysis
TPAP Software Platform
-
Sorts and tabulates pile test data automatically.
-
Displays force, velocity, and mobility graphs in real-time.
-
Simulation Module: Predicts response curves based on soil/pile properties, curve-matching for anomaly validation.
-
Impedance Log: Separates soil and pile signals, visualizing cross-section vs depth.
-
ASCII export supported for further processing and plotting.
Display Options
-
Velocity vs Time
-
Force vs Time
-
Force vs Frequency
-
Mobility vs Frequency

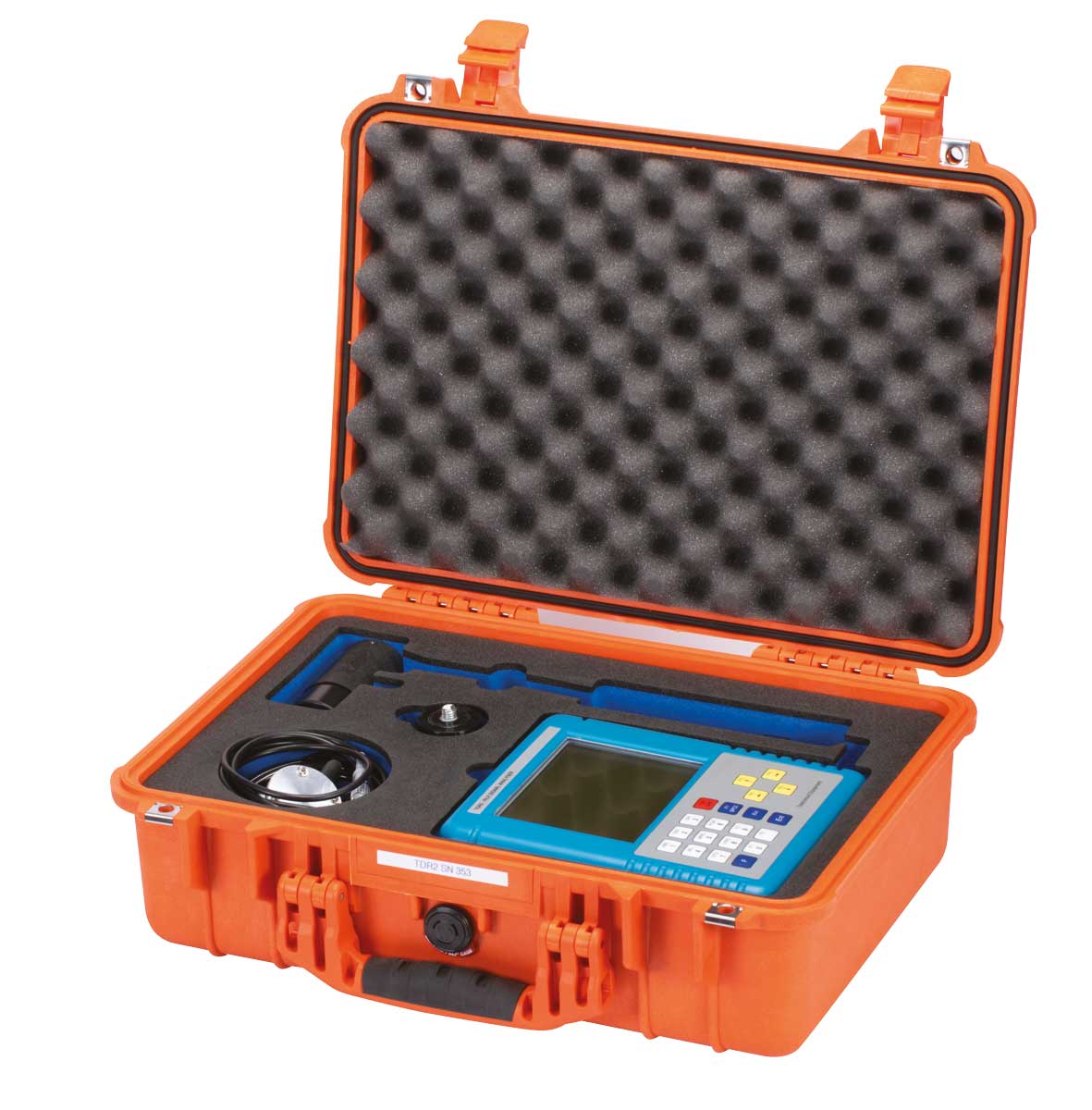

Included Accessories
-

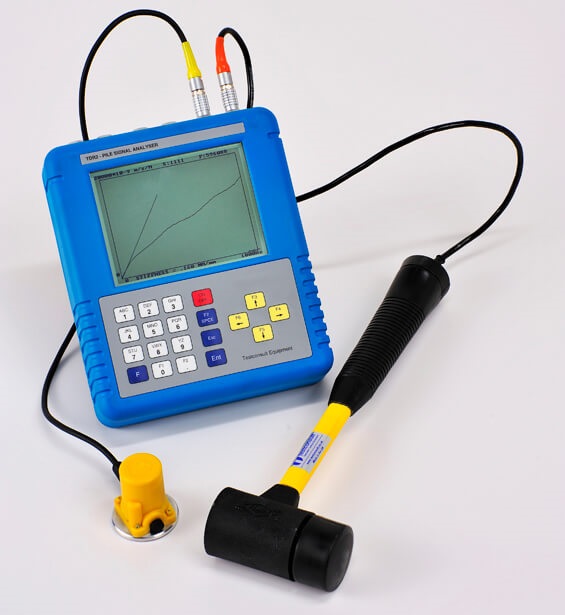

TDR2 Handheld Analyzer
-
Impact Hammer
-
Geophone (Velocity Transducer)
-
Charging Accessories (AC & DC)
-
Rugged Carry Case
-
TPAP Analysis Software
-
Calibration Certificate
-
User Manual
