SIGMASCOPE SMP350 Electrical Conductivity Measurement

SIGMASCOPE SMP350 DataSheet.pdf

Technical Specifications

Parameter Details
Measuring Principle Eddy current (ASTM E1004, DIN EN 2004-1)
Conductivity Range 0.5 to 65 MS/m (1–112% IACS)
Measurement Precision ±0.5% of reading at ambient temperature
Display 5.7″ color TFT touchscreen (640×480 px)
Operating Temperature 0 °C to +40 °C
Lift-Off Compensation Up to 500 μm coating thickness
Minimum Measurement Area Ø13 mm without distortion
Frequency Range 15 kHz to 2 MHz (probe dependent)
Connectivity USB port, printer output
Power Supply Battery or 110–240V AC
Memory Stores thousands of readings and test setups
Temperature Sensor Input Built-in or optional external TF100A
Statistical Evaluation Cp, Cpk, histogram, ΔT/Δt tracking

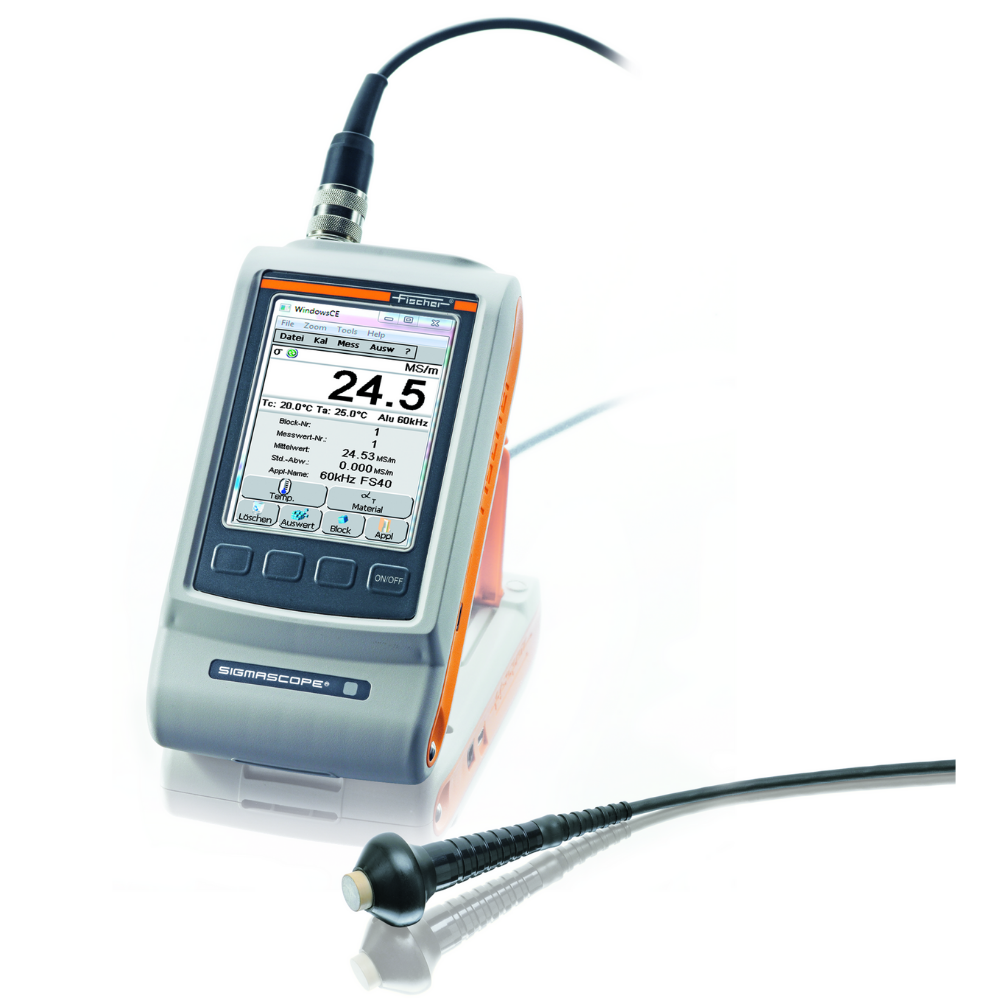

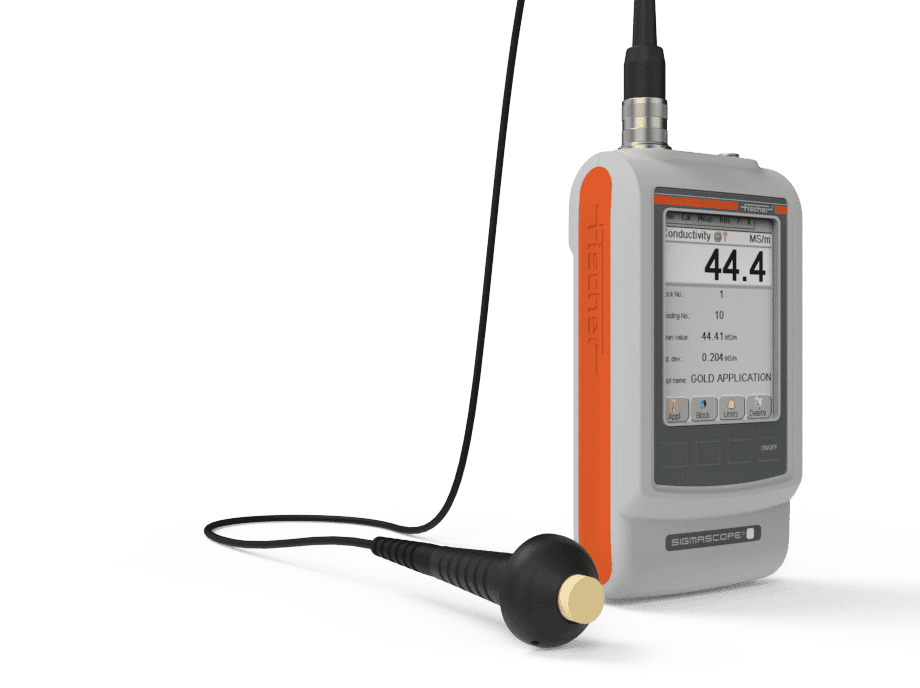

SIGMASCOPE SMP350 – High-Precision Electrical Conductivity Measurement for Non-Ferrous Metals

The SIGMASCOPE SMP350 Electrical Conductivity Measurement is a portable, high-accuracy instrument engineered for non-destructive electrical conductivity measurement of non-ferromagnetic metals. Utilizing the eddy current method in accordance with ASTM E1004 and DIN EN 2004-1, the SMP350 ensures precise results—even through coatings up to 500 μm thick. Ideal for quality assurance, material identification, heat treatment verification, and alloy sorting, this instrument is trusted in industries such as aerospace, automotive, electronics, and metal processing.

 Key Features of SIGMASCOPE SMP350

  • Non-Destructive Testing: Measures conductivity without damaging coated or bare metal surfaces.

  • Wide Measurement Range: 0.5 – 65 MS/m (1–112% IACS).

  • Automatic Temperature Compensation: Ensures measurement stability under changing conditions.

  • Advanced Data Logging: Internal memory for thousands of readings; USB interface for export.

  • User-Friendly Interface: 5.7” color TFT touchscreen with stylus or finger control.

  • Versatile Probe Options: Compatible with multiple frequency probes (15 kHz–2 MHz).

  • Real-Time Monitoring: Graphical representation of limits, Cp/Cpk calculations, and histogram analysis.

  • Lift-Off Compensation: Accurate measurements under coatings up to 500 μm.

  • Rugged and Portable: Lightweight, field-ready design with battery or AC power.

 Applications

  • Material Sorting: Identify and separate non-ferrous alloys quickly.

  • Heat Treatment Verification: Confirm conductivity changes post-treatment.

  • Aerospace Inspections: Complies with Boeing spec BAC 5651 (with FS40 probe).

  • Corrosion Detection: Monitor conductivity drop due to corrosion or material fatigue.

  • Raw Material Authentication: Verify composition of aluminum, copper, brass, etc.

  • Coin Validation: Authenticate alloys in currency, including Euro coins.

  • Anodized Aluminum QA: Prevent color inconsistencies in anodizing processes.

  • Precipitation & Alloy Homogeneity Tracking: Useful for Cu-Cr and other alloy systems.
