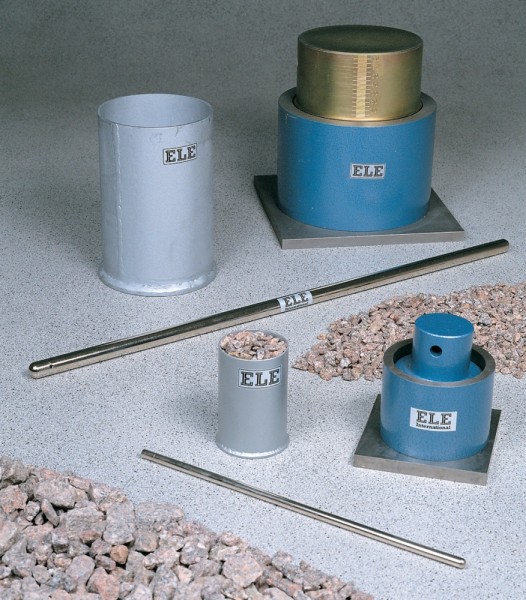

Aggregate Crushing Value Apparatus – 150 mm

Aggregate Crushing Value Apparatus- Determination of Compressive Strength

The Aggregate Crushing Value (ACV) Apparatus is a critical instrument for evaluating the mechanical strength of aggregates under compressive load. It assesses the crushing strength of road aggregates, which is vital for determining their suitability in pavement layers, concrete mixes, and load-bearing applications. This 150 mm model conforms to BS 812-112 and is widely used in quality control, pavement design, and geotechnical laboratories.

Key Features of Aggregate Crushing Value Apparatus – 150 mm

• Standard Compliance: Manufactured in accordance with BS 812-112 for reliable and repeatable test results.

• Robust Construction: Made from high-strength steel or cast iron to endure heavy compressive forces.

• Precision Fit: Includes a tightly fitting plunger and cylinder for uniform load distribution.

• Complete Test Set: Supplied with metal measure and tamping rod to support the full ACV test.

• Corrosion-Resistant Finish: Powder-coated or galvanized for long-term durability in lab or field conditions.

Applications

• Road and Highway Construction: Evaluates the strength of aggregates for base, sub-base, and surface courses.

• Concrete Mix Evaluation: Ensures aggregates meet compressive strength requirements for structural concrete.

• Pavement Material Testing: Assists in selecting durable aggregates for high-traffic zones.

• Material Testing Laboratories: Routine use for certifying aggregate sources in quarries and batch plants.

• Research and Development: Supports testing of alternative aggregates, including recycled materials.

Included Accessories

• Tamping Rod: 16 mm diameter × 600 mm long, hemispherical ends – Code: 34-0130

• Metal Measure

Alternatives

• 75 mm ACV Apparatus – Code: 42-4500
  (For smaller aggregate size testing applications.)
