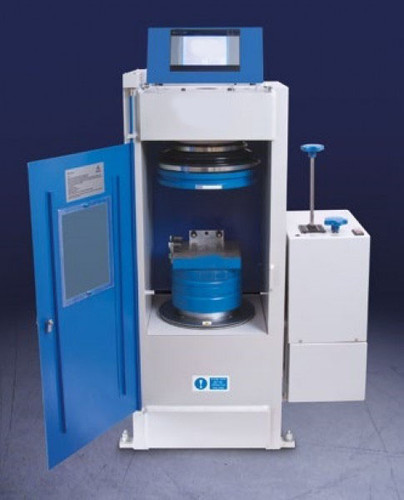

ADR Touch SOLO 3000 BS EN Compression Machine with Digital Readout and Self Centring Platens.

The ADR Touch SOLO 3000 is a high-capacity digital compression testing machine designed for reliable and consistent testing of concrete, cement, and mortar samples. With a maximum capacity of 3000 kN, this advanced unit features a welded steel frame, digital touch-screen interface, and self-centring platens to ensure accurate load application and test results. Designed for ease of use, traceability, and compliance with EN and BS standards, the system supports cube, cylinder, beam, and block testing.

Key Features of ADR Touch SOLO 3000 BS EN Compression Machine

• Digital Touch Interface: 5.7″ high-resolution QVGA display with intuitive, menu-driven operation.

• Self-Centring Platens: Standard on EN models for quick and accurate cube/cylinder positioning.

• Fast Setup: Favorite sample types and preloaded test profiles reduce setup time and training.

• Enhanced Traceability: Results include machine serial number and real-time load/time graph for quality assurance.

• Robust Frame: Welded steel structure with high frame stability and built-in safety features including interlocked safety gates.

• Flexible Testing Range: Supports cube sizes up to 200 mm and cylinders up to 160 x 320 mm.

Applications

• Concrete strength testing (cubes, cylinders)

• Quality control in construction materials labs

• Block, flagstone, and kerb stone load testing

• Flexural testing with optional 100 kN frame

• Structural and civil engineering testing applications

Included Accessories

• Self-centring lower platen

• Safety gate with interlock switches

• 2 GB memory and USB data export

• Flexural frame connectivity (with optional kit)

Optional Accessories

• Flexural Testing Frame Kit (100 kN) – Code: 37-6138

• Load Calibration Device (3000 kN) – Code: 37-8400

• Rectangular Platen (BS/EN) – Code: 37-4860

• Distance Pieces (20–100 mm) – Codes: 37-5110 to 37-5180

• Impact Printer (RS232) – Code: 37-4859/01
