The SPTMAN Hammer Energy Tester is a rugged, portable system designed to accurately measure the energy transferred from a drive hammer to the drive rods during Standard Penetration Tests (SPT). It calculates the actual hammer energy coefficient by comparing measured energy with the theoretical potential energy. This system is essential for validating and calibrating SPT equipment to ensure compliance with industry standards such as BS EN ISO 22476-3 and ASTM D4633-10.

Key Features of SPTMAN Hammer Energy Tester

Accurate Energy Measurement: Measures the actual energy transferred by the SPT hammer to the drive rods. Calculates the hammer energy efficiency (% energy transfer), as per ASTM D4633 and EN ISO 22476-3 standards.
Real-Time Data Display: Instantaneous digital readout of results on a high-visibility LCD screen.
Data Storage and Retrieval: Stores up to 700+ test results internally.
Compact and Portable Design: Lightweight, field-ready unit with rugged casing and strap mount for easy use on-site.
User-Friendly Interface: Simple keypad operation with intuitive menu navigation.
Battery Powered: Long-lasting rechargeable battery for extended field operation.

• Backlit, daylight-viewable monochrome LCD for low-light operation
• Stores over 700 test results with site and rig metadata
• ±2% accuracy of hammer energy
• Tactile alphanumeric keypad designed for gloved operation
• UKAS-traceable calibration included
• Software included for data download, analysis, and certificate generation
• Full on-site, virtual, and classroom user training available

Applications of SPTMAN Hammer Energy Tester

• SPT Hammer Calibration: Determines the energy ratio to normalize SPT N-values to N₆₀, which is critical for accurate soil profiling.
• Geotechnical Investigations: Used in foundation analysis, site classification, and soil strength determination for infrastructure and building projects.
• Quality Assurance in Field Testing: Verifies consistent performance of SPT equipment across multiple test sites.
• Soil Behavior Analysis: Supports accurate assessment of liquefaction potential and bearing capacity in soil layers.
• Research and Development: Employed in academic or technical institutions for soil mechanics and foundation engineering studies.
• Standard Penetration Test (SPT) energy measurement
• Foundation and geotechnical site investigation
• Compliance validation with BS EN ISO 22476-3
• Quality assurance in large geotechnical projects

Included Accessories

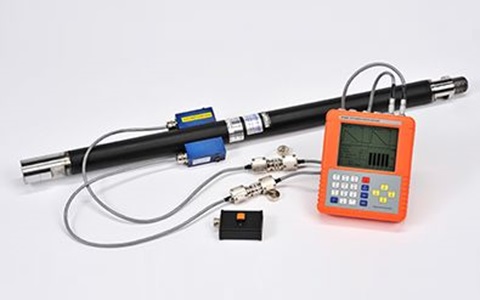

• Instrumented SPT rod (54mm diameter standard)
• Rugged waterproof carrying case
• External wall and vehicle chargers
• SPTMAN analysis software (Windows-compatible)
