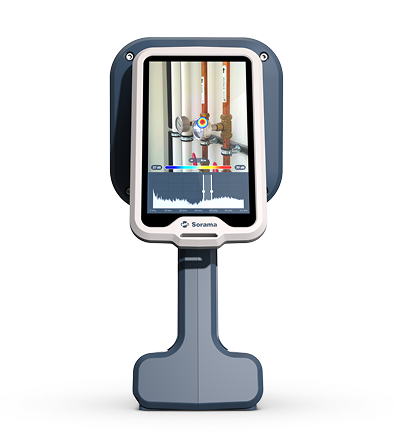

Sorama CAM iV64s – Acoustic Sensors for Leak Detection
Advanced Acoustic Camera for Leak, Mechanical, and Discharge Inspections
The Sorama CAM iV64s is a compact, powerful acoustic imaging device engineered for real-time detection of audible and ultrasonic sound sources. Whether used to detect gas or compressed air leaks, identify partial discharge in electrical systems, or perform mechanical diagnostics, the CAM iV64s provides fast, accurate sound visualization in both quiet and noisy environments.
Equipped with a 7-inch touchscreen, swappable smart batteries, and built-in connectivity, the CAM iV64s streamlines inspection workflows with ease and precision. Its weather-independent design and industrial-grade build make it ideal for use across manufacturing, energy, utilities, building diagnostics, and facility maintenance.
Key Features of Sorama CAM iV64s
-
Real-Time Acoustic Imaging: Instant detection and localization of sound sources via beamforming.
-
Ultrasound & Audible Range: Operates across a wide frequency range (10 Hz – 120 kHz) with 29 Hz resolution.
-
Intuitive Touchscreen UI: 7” capacitive LCD (720×1280) display with preset inspection modes.
-
Multiple Inspection Modes: Leak, mechanical, partial discharge, airtightness, and building inspection.
-
Lightweight & Portable: Weighs only 1.8 kg; includes a rugged waterproof travel case and smart accessories.
-
Data Capture & Export: Records .mp4 video and .jpeg image formats with 500 GB internal storage.
-
Modular Software Packages: Activate specialized modes based on inspection needs.
-
Durable Construction: Rated for operation between –20°C and 50°C, with swappable batteries for extended use.
Applications of Sorama CAM iV64s
-
Leak Detection: Identify compressed air, gas, and vacuum leaks—even in noisy environments.
-
Partial Discharge Detection: Locate insulation faults in high-voltage equipment using PRPD plots.
-
Mechanical Monitoring: Diagnose faulty bearings, cavitation, and other vibration-related issues.
-
Airtightness Testing: Evaluate building envelope integrity for energy efficiency.
-
Building Inspections: Locate problematic noise sources inside complex infrastructure.
Acoustic Performance
| Parameter | Specification |
|---|---|
| SNR (A-weighted @ 1 kHz) | 66 dB per channel |
| Sensitivity | –37 ±1 dB FS |
| Overload Point | 132.5 dB SPL at 1 kHz |
Data Output & Formats
-
Video: .mp4
-
Image: .jpeg
-
Interface: USB-C, USB 3.0, Wi-Fi
-
Tripod Mount: Standard 1/4” thread
Included Accessories
-
Sorama CAM iV64s Acoustic Camera
-
Smart Rechargeable Batteries ×2
-
Battery Charger
-
USB-C Cable
-
Hand Strap + Neck Strap
-
Waterproof Travel Case
Why Choose CAM iV64s
- Precision: Captures a broad spectrum of frequencies with high resolution.
- Portability: Compact, lightweight, ergonomic design.
- Durability: Reliable performance regardless of weather conditions.
- Insightful Reporting: Enables immediate visualization and expert-level analysis
- Broad utility: Serves industries from manufacturing and oil & gas to building inspection and healthcare.
