FlexoFORM Scanner- Thickness and Flaw Inspection Scanner
Flexible Phased Array Solution for Pipe Elbow Corrosion Inspection

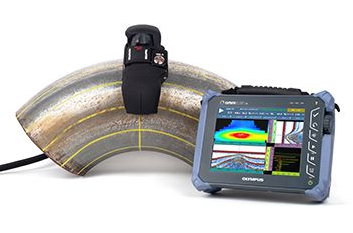

The FlexoFORM Scanner is a state-of-the-art, non-destructive testing tool developed to overcome the complexities of pipe elbow inspections. Leveraging flexible phased array ultrasonic technology, this solution delivers high-resolution wall thickness and flaw detection data across a wide range of elbow diameters—from 4.5 inches OD to flat surfaces. Designed for use with the OmniScan™ X3 or SX instruments, the FlexoFORM offers intuitive C-scan imaging, exceptional coverage, and precise corrosion mapping.
Key Features of FlexoFORM Scanner
-
Full Elbow Coverage: Ensures 100% area inspection for reliable corrosion and defect detection.
-
High-Resolution Imaging: Produces clear 2D C-scan maps with 1 mm × 1 mm data resolution.
-
Water Column Coupling: Maintains constant coupling with minimal water use; adaptable to rough surfaces and complex geometries.
-

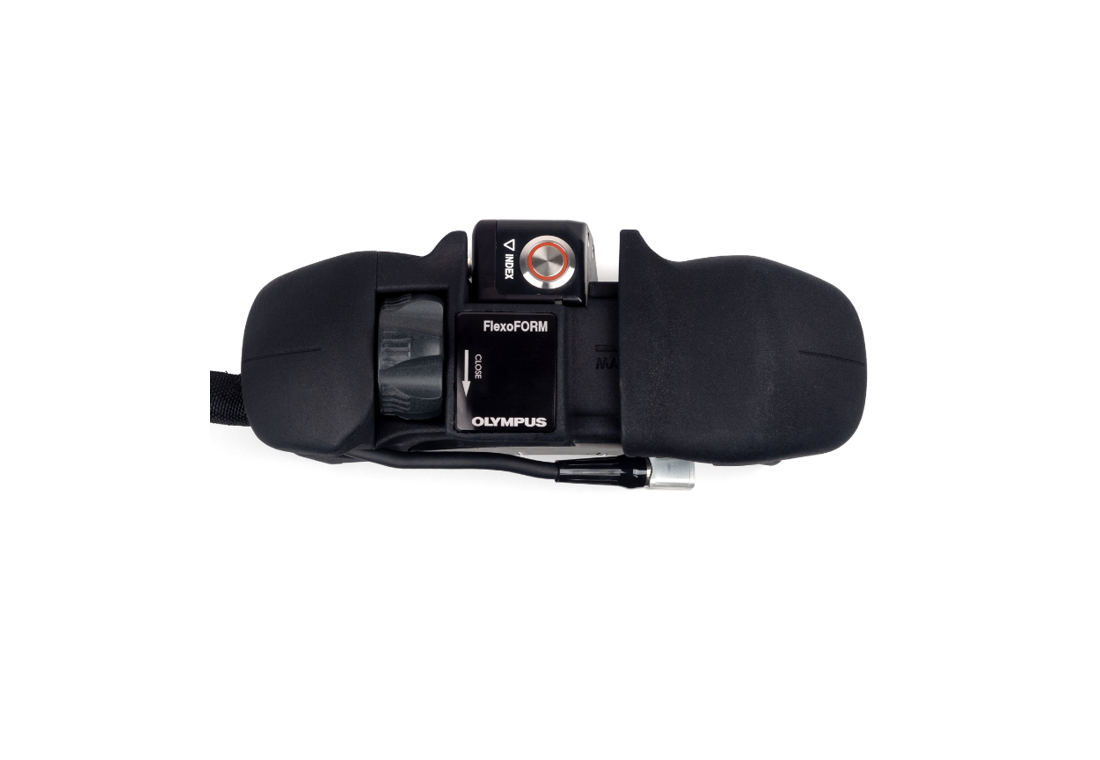

Scan Direction Encoding: Built-in encoder tracks scan position with a smart index button for axial movements.
-
Magnetic Wheel Base: Stabilizes scanner on the pipe surface; foam gasket retains water column integrity.
-
Multi-Diameter Flexibility: One probe and scanner system accommodates all elbow sizes from 4.5″ and up.
-
Modular Wedge Design: Easily swap wedges for different pipe diameters; available for both manual and automated scanning.
-
OmniPC™ & OmniScan Compatibility: Seamlessly integrates with Olympus/Evident software and instruments for advanced data interpretation.
Applications of FlexoFORM Scanner
-

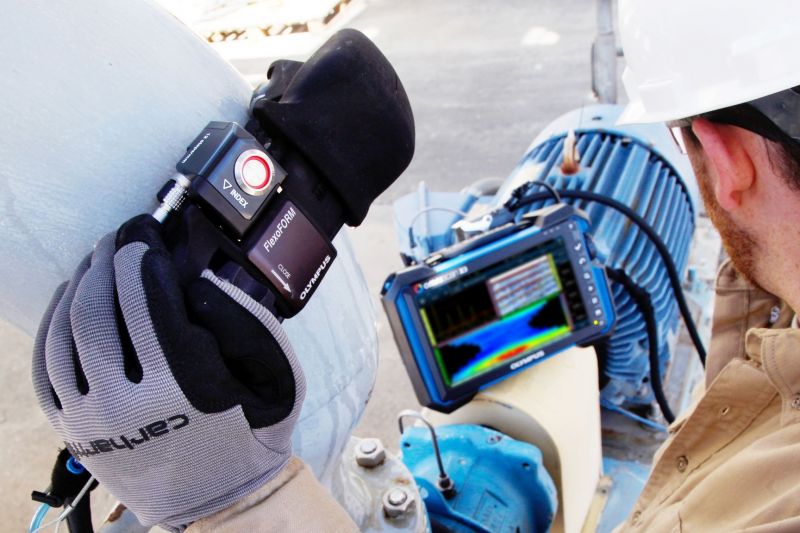

Flow-Accelerated Corrosion (FAC): Detect and quantify thinning in pipe elbows due to high-velocity fluids.
-
Erosion-Corrosion & Pitting: Map localized damage or inclusions in elbows and curved pipe segments.
-
Boiler Tube Water Walls: Longitudinal scanning mode suits power generation piping and boilers.
-
Cladding Delamination: Identify separation between protective cladding and base metal layers.
-
Custom Applications: Can be adapted for aerospace, manufacturing, utilities, and oil & gas pipelines.
Scanning Options
| Scan Type | Description |
|---|---|
| Longitudinal Scanning | Ideal for focused inspection zones or small-diameter pipes (e.g., water wall tubes in power plants). |
| Small-Diameter Elbow | Manual extrados scanning from 1.3” to 4” OD; Mini-Wheel™ encoder compatible for encoded C-scan. |
| Automated Scanning | SFA1-AUTO wedge series supports automation for pipes ≥8.625″ OD and flat surfaces, ideal for production or repeat inspections. |
Included Accessories & Options
-
Flexible Phased Array Probe
-
Pipe-Specific Wedges (Manual/Automated Options)
-
Built-in Encoder and Smart Indexer Button
-
Water Column Coupling System
-
Mini-Wheel™ Encoder (for small diameter elbows)
-
Optional Longitudinal and SFA1-AUTO Wedges
