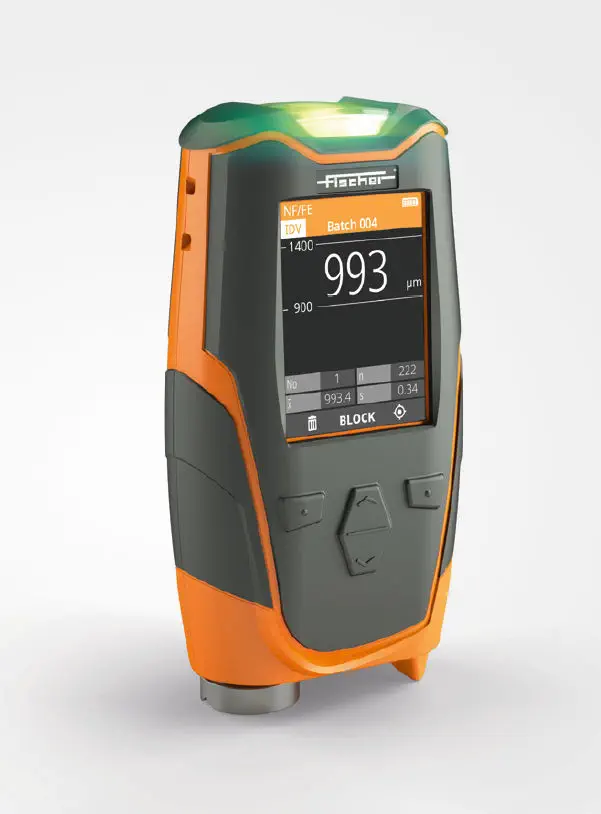

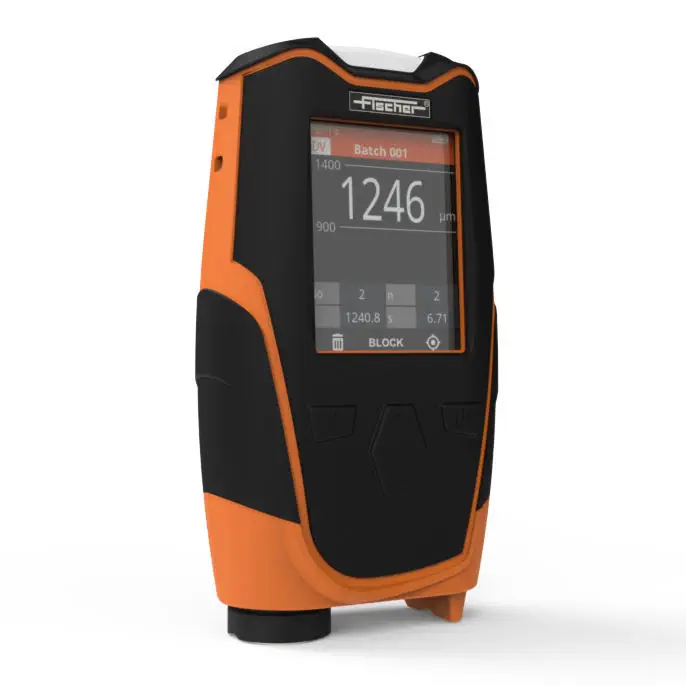

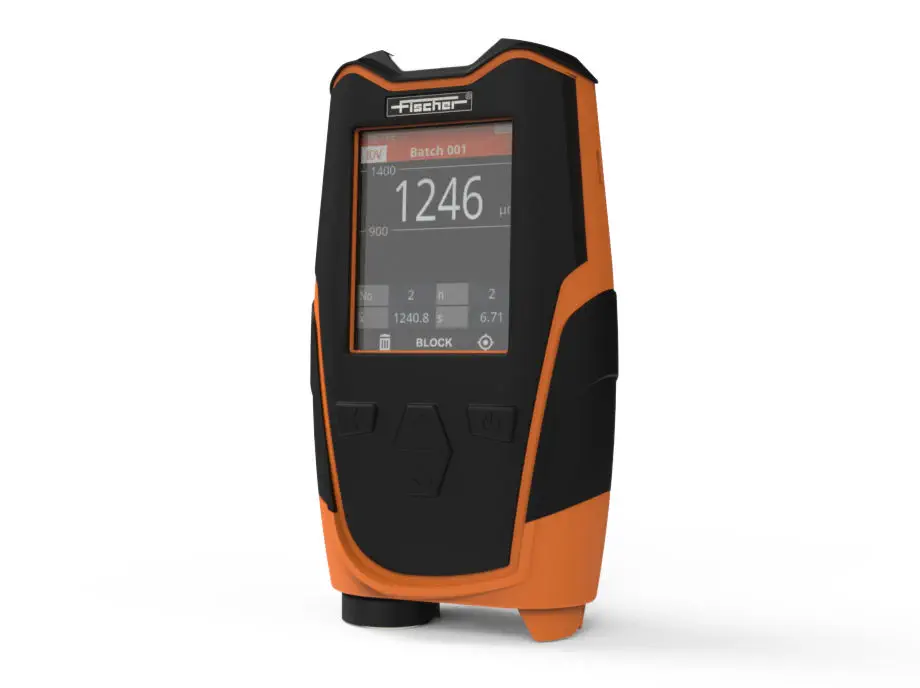

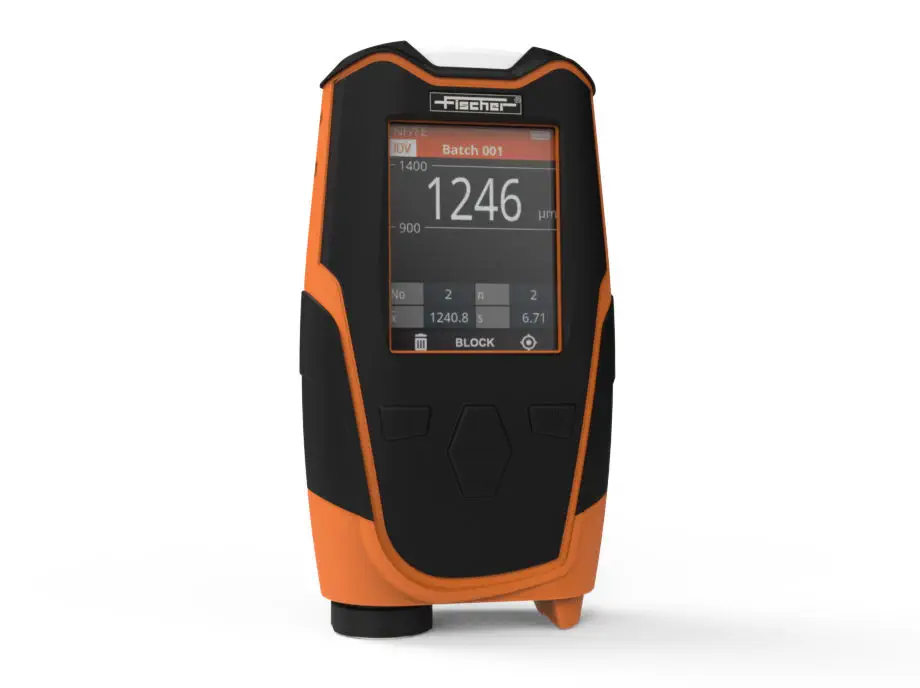

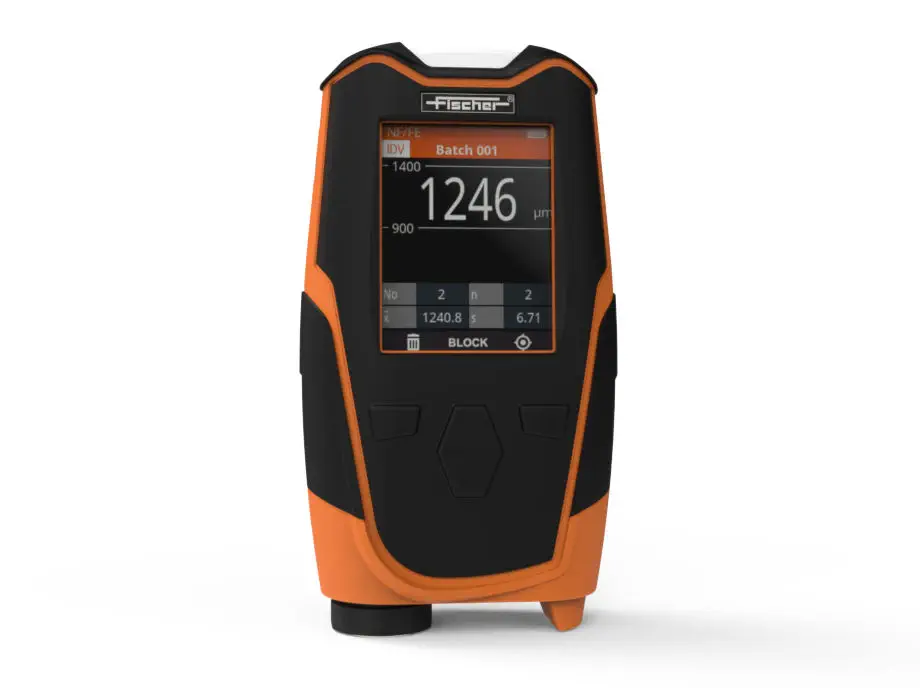

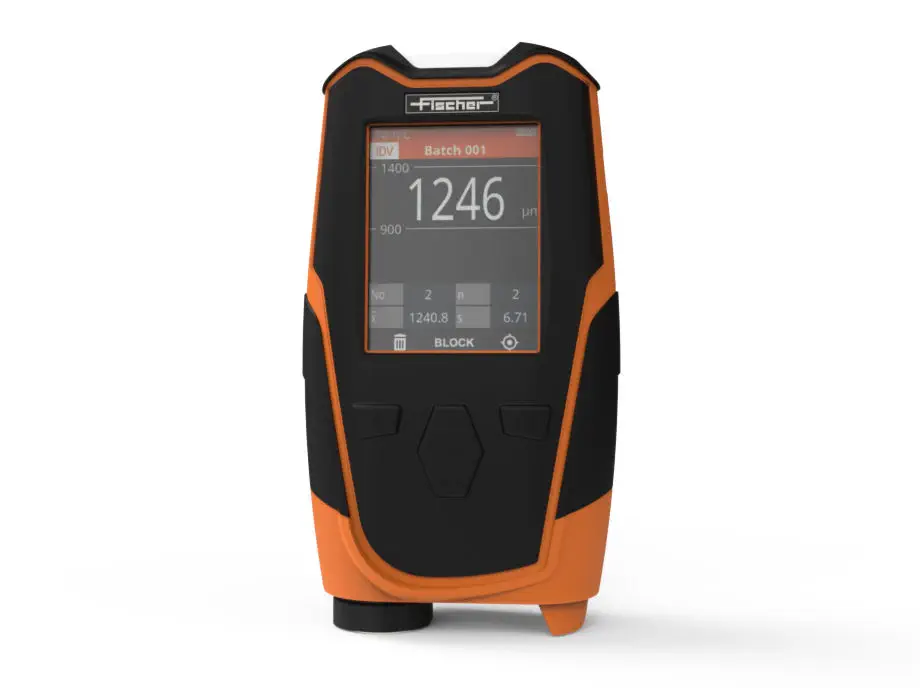

MMS Inspection DFT – Portable Coating Thickness Gauge

MMS Inspection DFT – Portable Coating Thickness Gauge

The MMS Inspection DFT is a rugged, pocket-sized coating thickness measurement device developed by Helmut Fischer, ideal for use in industrial applications including corrosion protection, manufacturing, and quality control. Utilizing both magnetic induction and eddy current methods, it measures coatings on both ferrous (FE) and non-ferrous (NF) substrates with exceptional accuracy and ease of use.

Equipped with an ergonomic, IP65-rated housing and intuitive interface, the MMS Inspection DFT is built for tough environments and can be operated comfortably with one hand—even when wearing gloves. Designed for quick calibration, efficient inspection, and long-term durability, it’s the perfect solution for coating thickness measurement on the go.

Key Features of MMS Inspection DFT

• Dual Technology: Magnetic induction (for FE) and amplitude-sensitive eddy current (for NF) with patented conductivity compensation.

• Smart Auto-Detection: Automatically selects measurement method based on base material (ISO/FE, NF/FE, ISO/NF).

• Multi-Sensory Feedback: LED, vibration, and sound signal out-of-tolerance measurements instantly.

• Graphical Calibration Assistant: Intuitive user interface guides calibration steps in real-time.

• Data Logging & Stats: Up to 250,000 readings in 2,500 batches; includes mean, min, max, standard deviation, and coefficient of variation.

• Multiple Modes: 150 readings/min in Scan Mode; 70 readings/min in Normal Mode.

• Rotating Display: High-contrast screen adjusts orientation based on operator position.

• Long Battery Life: Operates for over 14 hours per charge.

• Upgradeable Design: Enhanced model can be upgraded to the High model, preserving your investment.

Applications of MMS Inspection DFT

• Industrial Coating Inspection: Paint, varnish, plastic, rubber, and chrome coatings on metal substrates.

• Corrosion Protection: Quality control of hot-dip or electroplated coatings on steel and iron.

• Automotive and Aerospace QA: Measure coatings on aluminum, copper, brass, and other NF substrates.

• Manufacturing Process Control: Verify coating thickness during production or final inspection.

• Field Testing: Durable enough for construction sites and remote inspection work.

Included Accessories

• MMS Inspection DFT unit

• Carry case

• Charger (USB or wall plug)

• Quick-start guide

• Optional: Dual probe, additional calibration foils

Model Options

The Enhanced model is upgradable to the High version, ensuring flexibility for future needs.
